Acknowledgements

• Adapted from AB3

• Thank you Prof Damith and our TA Sean for guiding the team towards completing the various milestones.

• Libraries Used:
  • JavaFX
  • Jackson
  • JUnit5
  • Mockito

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

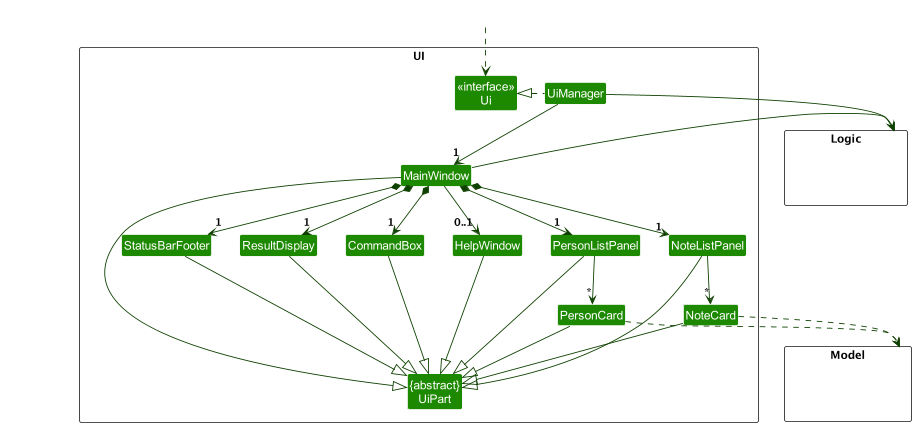

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, NoteListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person and Note object residing in the Model.

Logic component

**API ** : Logic.java

Here’s a (partial) class diagram of the Logic component:

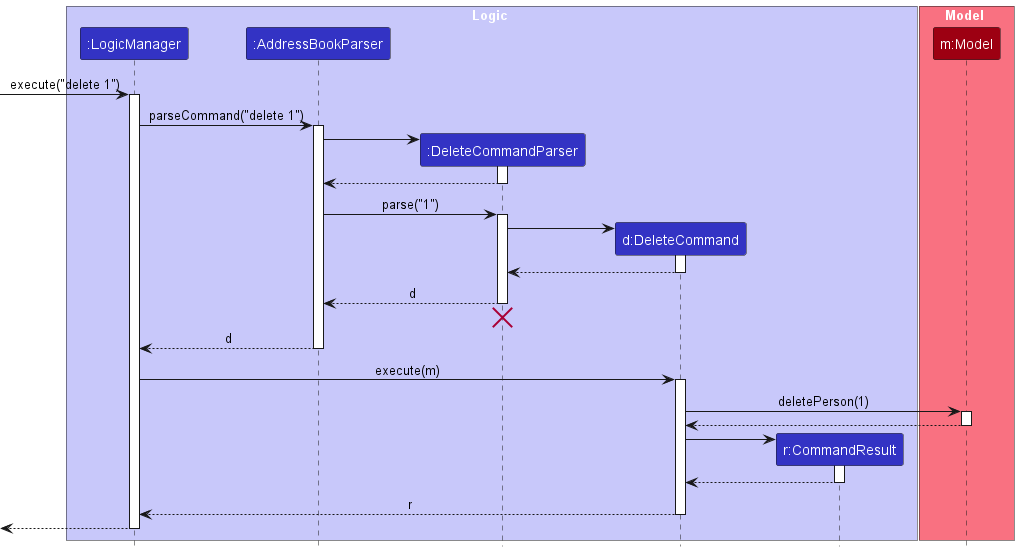

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.

• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

**API ** : Model.java

The Model component,

• Please note all entity objects in the Model component are immutable.
• • stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.

The Person entity,

• stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.

The Predicate<Person> entity,

• stores the most recent filter predicate applied to the filteredPersons list.
• used when refreshing the filteredPersons to persist the filter.

The Note entity,

• each person has a list of Note objects which are stored in a ObservableList.
• when rebuilding a Person object, the Note objects can be copied over from the old Person object to the new one. Since all objects are immutable, this should not pose any issues.

Storage component

**API ** : Storage.java

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both HealthSyncStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Undo feature

Implementation

The proposed undo mechanism is facilitated by LogicManager acting as the command invoker within the command pattern. It implements the interface CommandHistory to manage a command history stack containing a set of UndoableCommand to support the undo feature. Below are the implemented CommandHistory operations:

• LogicManager#addCommand(UndoableCommand )— Adds an UndoableCommand to the history stack (more of deque data structure in the actual implementation). The stack keeps track of at most 10 most recent actions.
• LogicManager#undoLastCommand()— Pops the most recent UndoableCommand from the history and restores the previous AddressBook state tracked by the UndoableCommand object that was popped.

Below is an example scenario on how the undo works with the command history stack maintained by the LogicManager

Step 1. The user launches the application for the first time. The LogicManager will be initialized with an empty command history stack.

Step 2. The user executes delete 1 command to delete the 1st patient medical record from the address book. The DeleteCommand extends UndoableCommand and thus supports undoable behaviours. The DeleteCommand#execute() is called and saves the current AddressBook state as the previous state before modifying it to carry out the delete command. After executing DeleteCommand the command object itself will be pushed into the command history managed by the LogicManager.

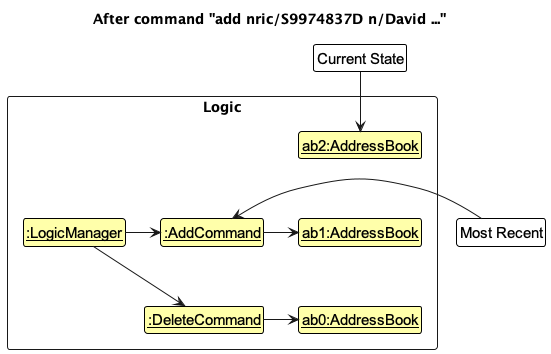

Step 3. The user executes add nric/S9974837D n/David …​ to add a new patient medical record. The AddCommand command also calls AddCommand#execute(), similar to the delete command, it saves the current AddressBook as the previous state before carrying out the add command.

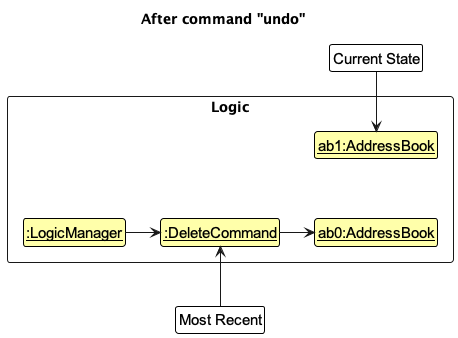

Step 4. The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call LogicManager#undoLastCommand, and this would pop the most recent UndoableCommand as explained above. Once the UndoableCommand was popped the UndoableCommand#undo() is executed which reverts the AddressBook into the previous state saved within the command.

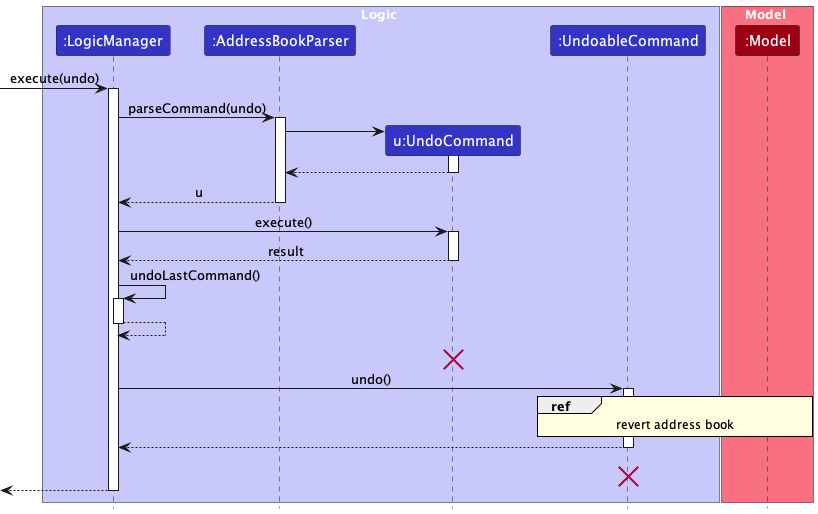

The following sequence diagram shows how an undo operation goes through the Logic component:

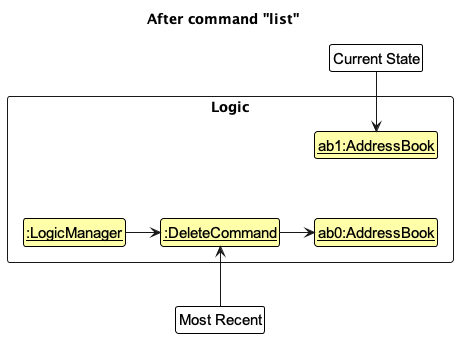

Step 5. The user then decides to execute the command list. Commands like ListCommand that does not modify the address book does not extend UndoableCommand and would execute ListCommand#execute() without saving prev state for undo feature. Thus, the LogicManager command history remains unchanged.

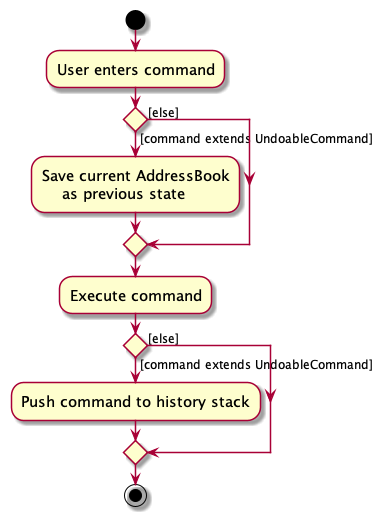

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo executes:

• Current choice: Saves the entire address book as prev state in each undoable command.
  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.
• Alternative 2: Individual command knows how to undo by itself. Instead of saving the whole address book within each command as prev state, only the change itself is saved.
  • Pros: Will use less memory (e.g. for delete, just save the person being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

Find feature

Implementation

The FindCommand feature allows user to search for patients in the patient book efficiently. It is implemented using a Predicate<Person> to filer out the patient book.

The parsing of user input is handled by FindCommandParser. This parser constructs all the relevant predicates based on the prefixes and keywords given by the user. It then combines the predicates which is used to construct FindCommand.

Design considerations:

Predicate Implementation

• Alternative 1 (current choice): Implement predicates as separate classes (e.g. name, gender, nric, etc.)

  • Pros: Better code readability as its own filtering logic is encapsulated in its own class.
  • Cons: Increases the number of classes, some duplication of similar logic code.

• Alternative 2: Combining predicate logic in a single class.

  • Pros: Reduces the number of classes.
  • Cons: Reduced readability and maintainability with mixed predicate test logic.

Data archiving

Overview

The data archiving functionality is designed to provide a simple yet effective means of preserving historical records of the addressBook.json file, which contains crucial address book data. By creating timestamped copies of this file, the system ensures that previous states of the address book can be retrieved and reviewed as necessary.

How It Works

The archive feature operates by duplicating the existing addressBook.json file. This process involves creating a copy of the file and then renaming this copy to include the current date and time, thereby creating a unique, timestamped archive file. The format for the archived file’s name is addressBook_.json, where is replaced with the actual date and time at which the archiving operation is performed. This naming convention facilitates easy identification and retrieval of archived data.

Execution Prerequisites

For the archive operation to be executed successfully, the following conditions must be met:

Existence of addressBook.json: The archive feature is contingent upon the prior existence of an addressBook.json file. This file serves as the source data for archiving, containing the current state of the address book that will be preserved. Initialization of the Address Book: The archiving process is intended to be performed after the address book has been initialized and contains data. Archiving an empty or uninitialized address book may not be meaningful and is therefore not recommended. Archiving Process

To initiate the archiving process, a specific archive command or trigger must be executed. This command engages the system to:

1. Verify the existence of the addressBook.json file.
2. Create a copy of addressBook.json.
3. Rename the copied file to addressBook_.json, accurately reflecting the date and time of the archiving operation.
4. It’s important to note that the archiving process is non-destructive to the current address book data. The original addressBook.json file remains intact and unchanged, ensuring that ongoing operations are not affected by the archiving process.

Archived File Location

Once the archiving operation is complete, the newly created archive file is stored within the data folder. This centralized location ensures that all archived files are organized in a single, accessible place, making it easier for developers and users to locate and manage historical data.

The data folder will, therefore, contain a series of timestamped files, each representing a snapshot of the address book at different points in time. These archived files provide a valuable resource for data recovery, historical analysis, and auditing purposes.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• Dr. Emily Chen is a General Practitioner
• She aims to enhance clinical efficiency and maintain high-quality care
• Challenges include time constraints and documentation overload
• She needs seamless workflow management and a keyboard-driven system
• Her personality is dedicated and empathetic, with a focus on patient care
• Can type fast hence loves to play type racer during her free time
• Prefers to type over mouse interactions

Value proposition: manage patient medical records faster than a typical mouse/GUI driven app

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …​	I want to …​	So that I can…​
* * *	user	view all my patient’s medical records	have a clear overview of all my records
* * *	user	add a patient’s medical record	record new patients I work with
* * *	user	edit a patient’s medical record	amend necessary details of a medical record when needed
* * *	user	delete a patient’s medical record	remove patient’s medical record that I no longer need
* * *	user	find patients with specific keywords	locate existing patient records efficiently
* *	user	list all patient’s appointment notes	view all existing appointment notes
* * *	user	list a particular patients’ appointment notes	view a particular patient’s existing appointment notes
* * *	user	add a patient’s appointment note	record keep the details of each appointment
* * *	user	edit a patient’s appointment note	update the details of an appointment
* * *	user	delete a patient’s appointment note	remove entries that I no longer need
* *	user	access a help page for quick reference	have a better idea where to get started
* *	user	undo my recent commands	I can use the application efficiently during my work hours
* *	user	archive my addressbook	backup my addressbook as and when I need

Use cases

(For all use cases below, the System is the HealthSync and the Actor is the user, unless specified otherwise)

Use case: List all patient medical records

MSS

1. User requests to list all patient medical records.
2. HealthSync shows a list of all the patient medical records.
   Use case ends.

Extensions

• 2a. The list of patient medical records displayed is empty.
  Use case ends.

Use case: Add patient medical record

MSS

1. User enters the new patient medical record information.
2. HealthSync adds the new patient medical record into the application.
   Use case ends.

Extensions

• 1a. User entered invalid / incorrect information.
  • 1a1. HealthSync shows an error message.
    Use case resumes at 1.

Use case: Edit patient medical record

MSS

1. User requests to list patients medical records
2. HealthSync shows the patient medical records list.
3. User enters the edited information of a patient medical record.
4. HealthSync edits the respective patient medical record with the new information.
   Use case ends.

Extensions

• 2a. The list of patient medical records is empty. Use case ends.
• 3a. The given patient index is invalid.
  • 3a1. HealthSync shows an error message.
    Use case resumes at step 3.

Use case: List all patients’ appointment notes

MSS

1. User requests to list all appointment notes

2. HealthSync shows a list of appointment notes

   Use case ends.

Extensions

• 2a. The list of appointment notes is empty.

  Use case ends.

Use case: Find specific patient(s) medical record

MSS

1. User finds the patient medical record with keywords such as gender, name etc.

2. HealthSync filters the patient records and displays the relevant ones that matches the search filter.

   Use case ends.

Extensions

• 1a. The given search filter parameters are invalid
  • 1a1. HealthSync shows an error message Use case resumes at step 1.

• 2a. No patient medical record matches the filter.

  • 2a1. HealthySync displays empty list.

    Use case ends.

Use case: Delete a particular patient medical record

MSS

1. User requests to list patients medical records
2. HealthSync shows a list of patients medical records
3. User requests to delete a specific patient’s medical record in the list

4. HealthSync deletes the patient’s medical record

   Use case ends.

Extensions

• 2a. The list is empty. Use case ends.
• 3a. The given patient index is invalid.
  • 3a1. HealthSync shows an error message Use case resumes at step 2.
• 3b. The given appointment note index is invalid.
  • 3b1. HealthSync shows an error message. Use case resumes at step 2.

Use case: List a particular patient’s appointment notes

MSS

1. User requests to view a particular patient’s appointment notes

2. HealthSync shows a list of appointment notes

   Use case ends.

Extensions

• 1a. The given patient index is invalid.

  • 1a1. HealthSync shows an error message.

    Use case resumes at step 1.

• 2a. The list of appointment notes is empty.

  Use case ends.

Use case: Add a patient’s appointment note

MSS

1. User requests to list patients
2. HealthSync shows a list of patients
3. User requests to add an appointment note for a given patient

4. HealthSync adds the appointment note

   Use case ends.

Extensions

• 2a. The list of patients is empty.

  Use case ends.

• 3a. The given patient index is invalid.

  • 3a1. HealthSync shows an error message.

    Use case resumes at step 2.

Use case: Edit a patient’s appointment note

MSS

1. User requests to list patients
2. HealthSync shows a list of patients
3. User requests to edit an appointment note for a given patient

4. HealthSync edits the appointment note

   Use case ends.

Extensions

• 2a. The list of patients is empty.

  Use case ends.

• 3a. The given patient index is invalid.

  • 3a1. HealthSync shows an error message.

    Use case resumes at step 2.

• 3b. The given appointment note index is invalid.

  • 3b1. HealthSync shows an error message.

    Use case resumes at step 2.

Use case: Delete a patient’s appointment note

MSS

1. User requests to list patients
2. HealthSync shows a list of patients
3. User requests to delete a specific person in the list

4. HealthSync deletes the person

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given patient index is invalid.

  • 3a1. HealthSync shows an error message.

    Use case resumes at step 2.

• 3b. The given appointment note index is invalid.

  • 3b1. HealthSync shows an error message.

    Use case resumes at step 2.

Use case: Undo recent use command

MSS

1. User request to undo command.

2. HealthSync undo the most recent undoable command the user has previously done.

   Use case ends.

Extensions

• 1a. User has not done any undoable commands previously.
  • 1a1. HealthSync shows a message to about no undoable commands to undo.
    Use case ends.

Use Case: Archive the Address Book

MSS

1. User requests to archive the address book.
2. HealthSync creates a timestamped archive of the current address book state, saving it in a designated data folder.
3. HealthSync confirms the successful archiving of the address book. Use case ends.

Extensions

None required. The archiving process is a simple, direct action that does not have conditional branches based on the user input or system state that would necessitate extensions.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 1000 patients without a noticeable sluggishness in performance for typical usage.
3. Should be able to hold up to 200 appointment note per patient without a noticeable sluggishness in performance for typical usage.
4. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.

Glossary

• Mainstream OS: Windows, Linux, Unix, MacOS

• Patient’s medical record: Essential information about a patient, including name, NRIC, phone number and other relevant details

• Patient’s appointment note: Information on a scheduled patient appointment, including date, time and assessment
• Undoable Commands: Add, Edit, Delete like commands.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder
   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.
   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

Help Command

1. Test the functionality of the help command to ensure it displays all available commands and their brief usage.
   1. Test case: help
      Expected: A list of all available commands along with a brief description of each is displayed to the user.
   2. Test case: help add
      Expected: Detailed usage of the add command is shown.

Listing patient medical records

1. List all patient medical records
   1. Prerequisites: Multiple patient medical records has already been created and stored.
   2. Test case: list
      Expected: All the patient medical records are displayed.

Add a patient medical record

1. Add a patient medical record into the application.
   1. Test case: add ic/S9974943C n/John Mark p/91234567 e/john@email.com g/M b/11-11-1990 d/Paracetamol Allergy i/Infectious Disease
      Expected: All patient medical records are displayed with the new patient medical record.
   2. Test case: add ic/S9974846F n/Matthew Bard b/07-10-1999 p/81234567 e/marky@email.com (missing optional fields)
      Expected: All patient medical records are displayed with the new patient medical record but with default values for the optional fields excluded in the input.
   3. Test case: add ic/S9974943C n/Shane Santos b/02-11-2000 p/82345678 e/shane@email.com (duplicate person same NRIC)
      Expected: No new patient medical record is added. Error will appear as a result notifying the user.
   4. Test case: add ic/invalidNRIC n/Jane Cleofas b/02-05-2000 p/83456789 e/jane@email.com (invalid argument value)
      Expected: No new patient medical record is added. Error will appear as a result notifying the user that the information supplied is invalid.

Edit a patient medical record

1. Edit a patient medical record.
   1. Prerequisites: At least one patient medical records are created and stored.
   2. Test case: edit 1 n/Cindy Tan p/94505333 e/editedmail@mail.com g/F b/11-11-1991 d/Antibiotic Allergy i/Genetic Disorders Expected: The particular patient medical record 1 is edited with the new information.
   3. Test case: edit 1 n/Cindy May Tan Expected: The particular patient medical record 1 is edited with the new name information.
   4. Test case: edit 1 (no new edit information provided) Expected: The particular patient medical record 1 is not edited and error message is shown to the user.
   5. Test case: edit 999 n/New name Expected: No edit made and error about invalid index is shown.
   6. Test case: edit (invalid command) Expected: No edit made and error about invalid command is shown.
2. Edit a patient medical record after find command.
   1. Prerequisites: Multiple patient medical records are created and stored and > 1 with gender M.
   2. Test case: find g/M then
      edit 1 g/F
      Expected: Edit is made to the respective record, and it should disappear in the current filtered patient medical record list as the current list displayed is filtered by gender M. list should display all the medical records again and should see the specific edited record now reflects the new gender information.
   3. Test case: find g/M then
      edit 1 n/Edited Name
      Expected: Edit is made to the respective medical record 1 in the current filtered list.

Find specific patient(s) medical record

1. Find patient medical record.
   1. Prerequisites: At least one patient medical records are created and stored.
   2. Test case: find n/Cindy Expected: Patient’s medical records from patients named Cindy returned.
   3. Test case: find n/Cindy May Jack Expected: Patient’s medical records from patients named Cindy, May and Jack are returned.
   4. Test case: find n/Taylor g/M Expected: Patient’s medical records from patients named Taylor that are male are returned.
   5. Test case: find i/diseases others Expected: Patient’s medical records from patients with Infectious Diseases, Degenerative Diseases and Others illness categories
   6. Test case: find (invalid command) Expected: No find made and error about invalid command is shown.
   7. Test case: find name/Jack (invalid command) Expected: No find made and error about invalid command is shown.
   8. Test case: find n/Jack n/John (invalid command) Expected: No find made and error about invalid command is shown.
   9. Test case: find i/diseases sickness (invalid command) Expected: No find made and error about invalid command is shown.

Deleting a patient

1. Deleting a patient while patients are being shown
   1. Prerequisites: List all persons using the list command. Multiple persons in the list.
   2. Test case: delete 1
      Expected: First patient is deleted from the list. Details of the deleted patient shown in the status message. Timestamp in the status bar is updated.
   3. Test case: delete 0
      Expected: No patient is deleted. Error details shown in the status message. Status bar remains the same.
   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

List all patients’ appointment notes

1. List all patients’ appointment notes
   1. Prerequisites: Multiple patients and appointment notes stored.
   2. Test case: list-an
      Expected: All appointment notes are displayed.

List a particular patient’s appointment notes

1. List a particular patient’s appointment notes

   1. Prerequisites: Multiple patients and appointment notes stored. Each patient must have at least 1 appointment note.
   2. Test case: list-an 1
      Expected: All appointment notes are displayed for the patient in index 1. Appointment notes from other patients should not appear.

2. List a particular patient’s appointment notes with no patients

   1. Prerequisites: No patients are stored.
   2. Test case: list-an 1 (invalid index)
      Expected: No appointment notes should appear. Error will appear in the status message.

Add a patient’s appointment note

1. Add a patient’s appointment note

   1. Prerequisites: Multiple patients are stored.
   2. Test case: add-an 1 d/19-02-2024 t/1130 n/General Flu
      Expected: All appointment notes are displayed with the additional new appointment note.
   3. Test case: add-an 1 d/19-02-2024 t/1130 (missing compulsory field)
      Expected: No appointment note is added. Error will appear in the status message.

2. Add a patient’s appointment note with no patients

   1. Prerequisites: No patients are stored.
   2. Test case: add-an 1 d/19-02-2024 t/1130 n/General Flu (invalid index)
      Expected: No appointment note is added. Error will appear in the status message.

Edit a patient’s appointment note

1. Edit a patient’s appointment note

   1. Prerequisites: Multiple patients and appointment notes stored. Each patient must have at least 1 appointment note. List notes of patient 1 by list-an 1.
   2. Test case: edit-an 1 1 d/19-02-2024 t/1230 n/General Flu
      Expected: The particular appointment note will be edited with the information above.
   3. Test case: edit-an 1 1 n/General Flu (partial update)
      Expected: The particular appointment note will be edited with the information above.
   4. Test case: edit-an 1 d/19-02-2024 t/1230 n/General Flu (missing compulsory field)
      Expected: No appointment note is added. Error will appear in the status message.

2. Edit a patient’s appointment note with no patients

   1. Prerequisites: No patients are stored.
   2. Test case: edit-an 1 1 d/19-02-2024 t/1230 n/General Flu (invalid index)
      Expected: No appointment note is edited. Error will appear in the status message.

Delete a patient’s appointment note

1. Delete a patient’s appointment note

   1. Prerequisites: Multiple patients and appointment notes stored. Each patient must have at least 1 appointment note. List notes of patient 1 by list-an 1.
   2. Test case: delete-an 1 1
      Expected: Appointment note of patient 1 with index 1 will be deleted.
   3. Test case: delete-an 1 (missing compulsory field)
      Expected: No appointment note is deleted. Error will appear in the status message.

2. Delete a patient’s appointment note with no patients

   1. Prerequisites: No patients are stored.
   2. Test case: delete-an 1 1 (invalid index)
      Expected: No appointment note is deleted. Error will appear in the status message.

Undo recent user commands

1. Undo the user’s recent patient related undoable command

   1. Test Case:

      • add ic/S9874943Z n/John Mark p/91234567 e/john@email.com g/M b/11-11-1990 d/Paracetamol Allergy i/Infectious Disease
      • edit 1 n/Edited Name
      • delete 1
      • undo 3 times
        Expected: Should be back to the initial state before the test case was executed showing successful undo of the Add/Edit/Delete commands.

   2. Test Case:

      • add ic/S9874943Z n/John Mark p/91234567 e/john@email.com g/M b/11-11-1990 d/Paracetamol Allergy i/Infectious Disease
      • edit INDEX_OF_NEW_RECORD n/1
      • edit INDEX_OF_NEW_RECORD n/2
      • Keep doing edit command until n/10
      • undo until nothing left to undo
        Expected: The application only tracks 10 most recent undoable commands. This results in undoing all the Edit commands but is unable to undo the Add command.

2. Undo the user’s recent patient appointment note related undoable command

   1. Test Case:
      • Execute a sequence of appointment related commands:
        • add-an 1 d/22-02-2024 t/1430 n/Stomach
        • edit-an 1 1 n/General Flu
        • delete-an 1 1
      • Followed by undo 3 times
        Expected: Should be back to the initial state before the test case was executed, showing successful undo of the Add/Edit/Delete of the appointment notes commands.

Archive Command

1. Test the functionality of the archive command to ensure it creates a timestamped snapshot of the current address book state.
   1. Test case: archive
      Expected: A new file named addressBook_YYYY_MM_DD_T.json is created in the data folder, indicating the archive was successful. The exact filename will vary based on the current date and time.

Planned Enhancements

Team size: 5

Current behaviour is based of v1.3 - v1.4

1. Improved Success / Error Messages for add and edit:

   1. Success Messages: The current behaviour of the application shows success messages with missing information are shown to the user after the commands add and edit are executed successfully. As stated by bug issues: #112, #108, #97. We plan to update the success messages with the missing attributes of the added or edited medical record. For instance, it should include Drug Allergy, Birthdate, Gender, NRIC for successful commands. For the edit success message on top of the missing attributes, edited attributes can be specified as well to the end user.

   2. Error Messages: The current behaviour of the application shows vague error messages when an invalid PATIENT_INDEX for edit command is entered. To tackle the respective bug issues #128 and #127 we plan to update the error message for edit to account for invalid PATIENT_INDEX and show ‘The index provided is invalid’.

   All these message fixes would be formatted better with proper ‘break-lines’ as well.

2. Improved validation checking for NRIC and Email for add and edit:

   1. Improve NRIC digits validation: The current application only validates whether it is in the format of ‘[S/T/F/G/M]XXXXXXX[A-Z]’. It does not account the digits whether it is actually valid as addressed by bug issue #85. We plan to improve the validation by also considering if the digits are valid with respect to the official Singapore NRIC format which considers birth year and more.

   2. Improve Email validation: The current application does not check if the @domain is valid such as whether it contains a top level domain as addressed by bug issues #114, #105. Hence, we plan on improving the validation to also consider if the domain provided has a top level domain or whether the domain itself corresponds to an actual legitimate domain.

3. UI Improvements
   1. Footer: In the current design, the footer does not consistently stick to the bottom of the window, especially when resizing to large windows. As stated by bug issue: #117. We plan to update this by modifying the UI layout slightly so that the footer sticks to the bottom of the window at all times.
